Pushing without toppling

1. Introduction#

A glass pushed sideways across a table either slides or falls over. This is not luck. The height where the jaw touches the glass decides it, before the arm moves. This page gives the rule that decides it. It explains why the rule is worked out again for every glass. It explains why some glasses must be refused. It also explains what the arm does about friction, a number in the rule that nothing in this cell can measure.

All seven solutions need this page, and none of them differs in it. By the end you will know four things. The height that matters is not the height the arm aims at. A refusal is a result, not a failure. Every solution acts and then measures, instead of trusting a prediction. And a trained model can help inside that loop without being able to break it.

Contents#

1. Introduction
2. Why no solution can answer this on its own
3. The limit: slide, or tip
4. The number nobody has
5. The loop: plan, feel, look again
6. The honest limit
7. Where to go next

2. Why no solution can answer this on its own#

The seven solutions differ in how they choose a push. They choose which glass to move, in which direction, and how far. That difference stops at this page, for two reasons.

First, the table does not know which method chose the push. A glass touched too high falls over, whether simple geometry chose the contact or a large trained model did. The contact and the glass decide the outcome. So the limit belongs to the situation, not to the method, and it must be the same for all seven.

Second, none of the seven can predict exactly where a pushed glass will stop. Friction is not the same everywhere under the foot of a glass. The flat jaw touches the curved glass on a small patch, not at one point. And a glass turns as well as moves. A precise prediction needs numbers that nobody here has. So every solution must act, measure what really happened, and correct. This loop is shared too.

So this page holds two things. The limit says whether a push may happen at all. The loop runs around every push that does happen. The next section starts with the limit.

3. The limit: slide, or tip#

The rule comes from comparing two forces, so this section starts with those two forces.

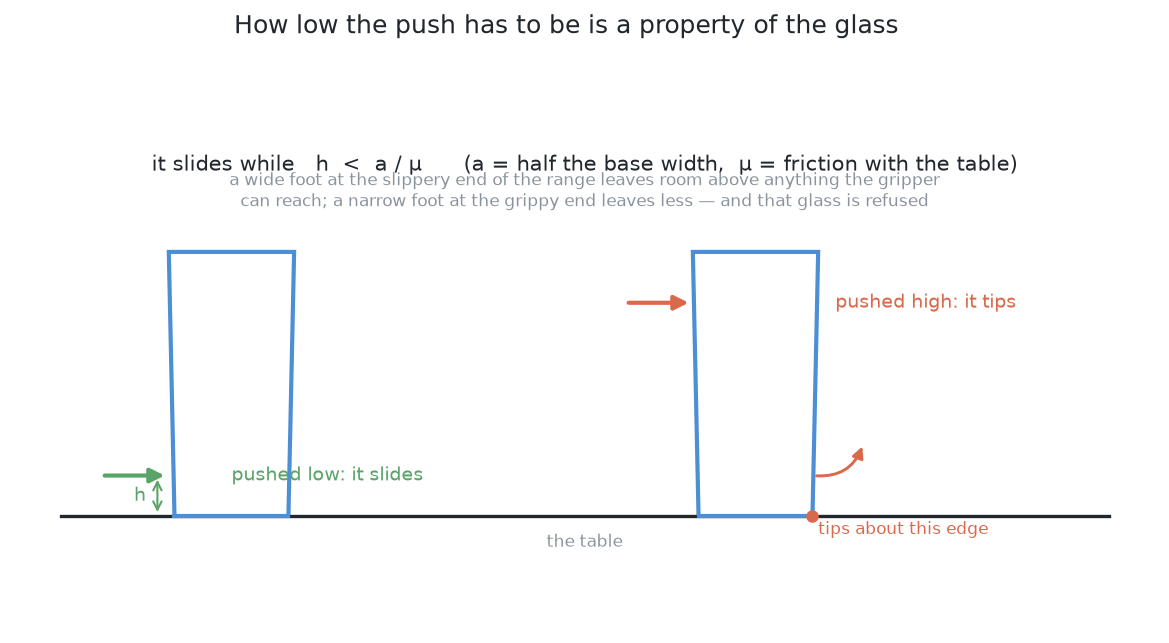

A glass on a table is held down by its weight. Friction holds it still. Push it sideways at some height, and one of two things gives way first. The foot can slide over the table. This happens once the push is larger than friction. Friction is the friction coefficient times the weight. Or the glass can tip. It turns about the bottom edge furthest from the jaw. This happens once the turning effect of the push is larger than the turning effect of the weight.

Use these letters:

• h is the height where the jaw touches the glass.
• a is half the width of the glass's foot.
• μ (the Greek letter mu) is the friction coefficient between glass and table. It is a plain number that says how much the two surfaces grip each other.

Sliding needs a push of μ times the weight. Tipping needs a push of the weight times a / h. This is because the push acts at height h, and the weight acts at distance a from the edge the glass turns about. So the glass slides first while

h  <  a / μ

and it tips first above that height.

Two facts about this rule help a lot. First, the weight appears on both sides and cancels. So the limit does not depend on how heavy the glass is. This is good, because nothing weighs a glass before it is pushed. Second, the rule does not depend on how hard or how fast the jaw pushes. So a gentle push does not make a high contact safe. A push that is too high tips the glass slowly instead of quickly. This was also tested, and a slower push does not topple fewer glasses gives the result.

The rule uses three numbers, and the next three parts look at them in turn: the foot, the height, and the case where no height works. A fourth part then checks the claim about speed.

The push height is worked out per glass#

The rule uses a, which is half the foot width. Every glass has its own foot. So the highest safe contact is a different number for every glass.

This is why the push height is computed from the measurement, not chosen once. The camera work reports how wide each glass is at its foot. So the arm can check the limit for that glass before it touches it. One safe height for every glass would not work. A low height refuses glasses that could have been pushed. A higher height pushes glasses that will fall. The whole project follows this pattern: compute what the measurement allows for each case.

The height that counts is the top edge of the jaw#

The arm cannot choose h freely either. And the right value for h is not the obvious one.

The middle of the jaw rides at 75 mm above the table. This is as low as the hand can go. The front part of the jaw is 63 mm tall, so its top edge stands at 107 mm. These numbers come from the gripper, and they do not change between glasses. They are large because the hand is turned on its side to fit between the glasses. How low the push has to be explains why it is turned.

A glass that is wider higher up touches the top edge of the jaw first. The tapered glasses here are wider higher up. So for them the contact is at the top edge, and h is 107 mm, not the 75 mm the arm aims at.

The difference is 32 mm. The limit itself is often only a few tens of millimetres, so this difference matters a lot. Checking at the middle of the jaw calls far too many glasses safe. For example, take 400 drawn tapered glasses at the friction the simulator uses. A check at the middle calls about one in eleven safe to push. A check at the top edge calls none of them safe.

The same is true for every kind of glass, not only the tapered one. The table below has one row for each kind. The first column is the share that a check at the middle of the jaw calls safe. The second column is the share that is really safe, because the contact is at the top edge. Both use the friction the simulator uses.

The two checks make different kinds of mistake. The middle check admits glasses that will be touched too high, and those glasses fall. The top-edge check leaves some glasses alone that could have moved. A fallen glass is lost for good. A refused glass is only a refusal in the report. So the wrong choice here makes the mistake that cannot be undone. This is why this page fixes the rule, instead of leaving it to each solution.

Some glasses cannot be pushed at all#

The two parts above lead to a third fact. It is easy to miss, because it looks like a gap rather than an answer.

The limit a / μ is small when the foot is narrow or the friction is high. It can be below 107 mm. It can even be below 75 mm, the lowest the jaw can go without hitting the table. For such a glass, no contact height is safe. The glass tips before it slides, whatever the arm does.

The only correct answer for that glass is to refuse it. The glass stays standing where it was, and the report gives the reason. The run then ends as correct but incomplete. The examiner explains how refusals are counted, and why a refusal is a result. A fallen glass cannot be recovered, as the honest limit explains. So anything doubtful ends with the glass untouched and a line in the report. No solution may add a fallback that tries anyway.

The safety check sits outside the policy. A policy is the part of a solution that chooses the push. Six of the seven solutions check the rule from the measured foot width before any model is asked. So a bad model cannot approve a push that tips a glass. The world-model solution is different. It holds no friction value, so it cannot use the rule. It refuses a glass when its own learned model turns down every push it tried. The limit is the same in both cases. Only the thing trusted to apply it is different.

A slower push does not topple fewer glasses#

A refusal leaves a glass unmoved, so a gentler push may sound like a better answer. The rule above says it is not. Speed does not appear in h < a / μ. So the rule predicts that a slow push tips a glass just as often as a fast one.

The project tested this prediction with measure_push_speed.py. Solution 2 chose one push on each of 367 tables. The same push was then made on fresh copies of each table, at five speeds. The examiner's own speed is 20 mm per second.

In the table below, each row is one speed. The middle column counts the glasses that toppled. The last column is how far the pushed glass moved, as a median.

The slowest push toppled slightly more glasses, not fewer. The difference is 1.9 percentage points. Its standard error is 2.9 points. A standard error says how much a number would change by chance alone. So this difference is noise, as the rule predicted.

Two more things show in the table. Four times the speed is really worse. It toppled 7.1 points more, which is 2.3 standard errors. And slow pushes moved the glass less far, 34.7 mm against 45.5 mm. A push exists to make room, so a slow push costs room and buys no safety. These numbers are from the project's own page on toppling.

So the refusal rule is the only defence against toppling here. Speed is not a way round it.

All of this depends on μ. The next section looks at where that number comes from.

4. The number nobody has#

The rule above needs μ, so this section asks where μ comes from.

No solution is ever told the friction, and nothing in the cell measures it. What a solution is never told explains this in full. So every solution has to guess μ.

The guess matters a lot. Glass on a dry wooden top has a friction coefficient of about 0.2 to 0.5. At 0.5, the limit a / μ is less than half of what it is at 0.2. So a wrong guess can decide whether a glass should be pushed at all.

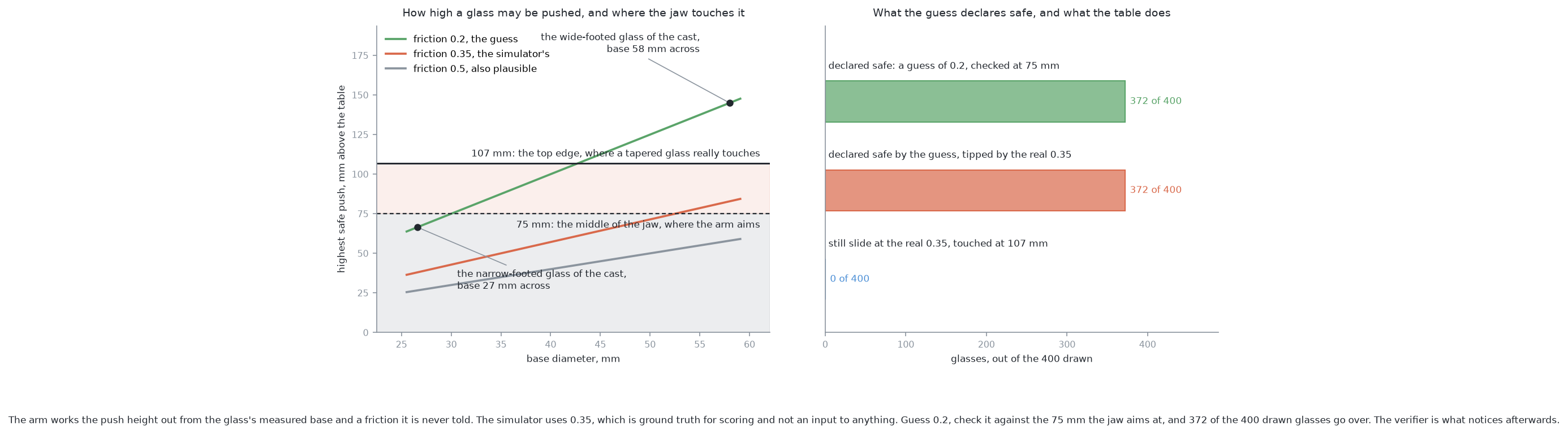

The programmed geometry handles this by using the whole range, 0.2 to 0.5. It asks one of three questions about each glass:

• If the glass is safe even at the worst friction, it is pushed.
• If the glass is unsafe even at the best friction, it is refused.
• If the two ends disagree, the arm makes a 5 mm test push. It looks before and after. A glass that slid has moved. A glass that leaned has fallen back to where it stood.

All seven solutions also follow two habits.

They always push as low as the gripper can reach. The height is already the lowest the hardware allows. So there is nothing to tune. Pushing higher never helps.

They watch what really happens, instead of trusting the prediction. If the guessed friction is too low, the limit comes out too high. Only evidence from the table can catch this. That evidence comes during the push and just after it. The next section describes the loop that collects it.

5. The loop: plan, feel, look again#

No solution here acts on a prediction and walks away. Each one acts, senses what happened, and decides again. This section describes that loop.

A programming comparison helps. One way is to compute a plan once and then run it blindly. This is like unrolling a loop into a fixed list of steps, because you think you know how many times it will run. These solutions do something else. They keep state that is re-read. The arrangement of the table is a value. The arm measures it, acts on it, and measures it again. The loop continues while that value says there is still work to do. So the arm repeats one step: look at the table, choose one push, make it, look again. It stops when every glass has its room, or when every glass left has been refused.

Each pass through the loop has three parts.

Plan. The solution uses the measurements. It chooses which glass to move, where to move it, and which way the jaw comes in. The topple limit is checked here. A glass that fails the check never reaches the next part.

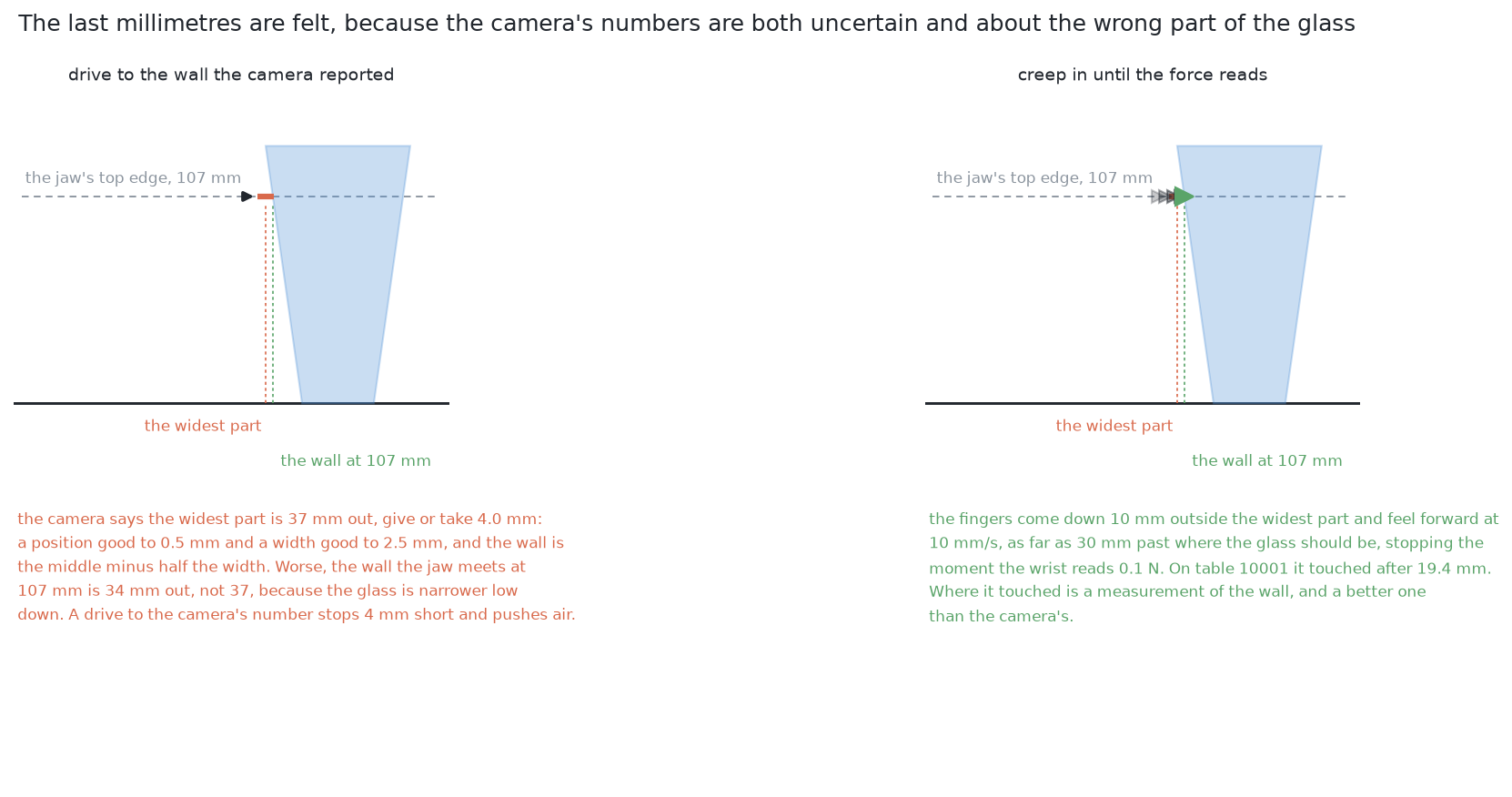

Feel. The jaw does not drive to a computed contact point. Every measurement has some error. So a jaw driven to a computed point will hit a glass whenever a measurement is a few millimetres wrong. Instead, the closed jaw comes down behind the glass. It moves forward slowly until it touches. Then it pushes, backs off, and reports the force it felt. The last millimetres are felt, not driven. The whole project handles contact this way.

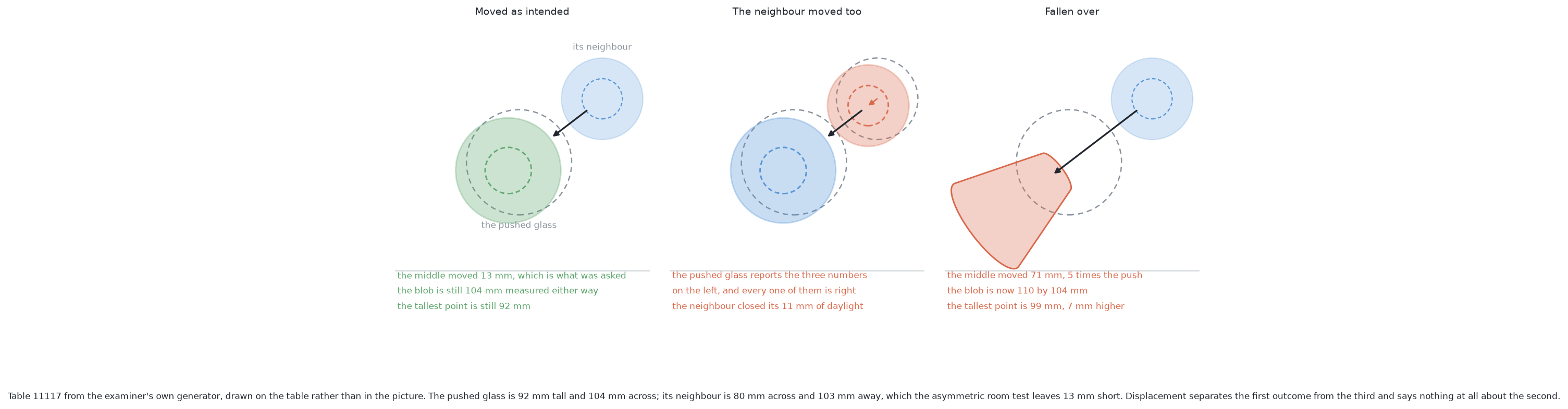

Look again. New measurements show where the glass really stopped. This is compared with where it was sent. The difference is the only true information about the push, because no model could have known it in advance. Then the loop starts again from the table as it is now.

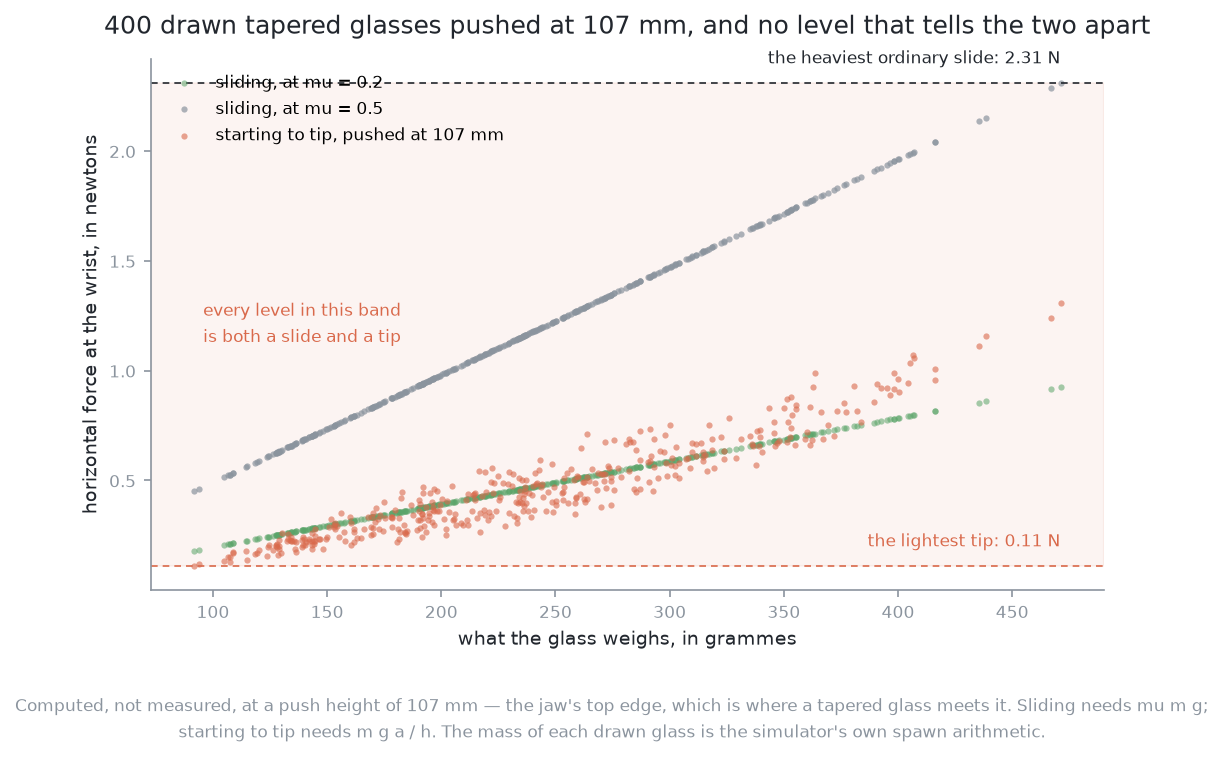

There is room for two learned helpers inside this loop. Because they sit inside the loop, we can judge them by what a wrong answer would cost. Neither one is a solution. Neither chooses a push or a destination, and neither can approve anything. They are checkers, one after the push and one during it. Both are designs, not code. This page describes them because every solution could use them in the same way. The repository does not contain them.

A change verifier, placed after the action#

The first helper answers the question that the look-again step asks: did this push do what it was meant to do?

Geometry answers part of this well. It can say how far the glass moved, and compare that with how far it was sent. But it answers the most important part badly. A camera looking straight down at a fallen glass sees a wider shape than before. A glass that slid a long way also leaves a shape in a new place. A small trained model could look at the scene before and after the push. It would answer three questions. Did the chosen glass move as intended? Did anything else move? Has anything fallen over?

This model is safe because of where it sits. It runs after the push. So it can only be wrong about something that already happened. It cannot tip a glass, because the push is over when it speaks. It cannot cause a collision, because it does not choose where the arm goes. A wrong answer costs only a few seconds. For example, the arm takes one more look, or a run stops early. A model placed before the push is different. It would choose contacts, and its mistakes would be made with the arm. So a checker after the push has a limit on how much harm it can do. That limit comes from where it sits, not from how good it is.

An early abort, acting during the push#

The second helper answers a different question. The difference is when it acts.

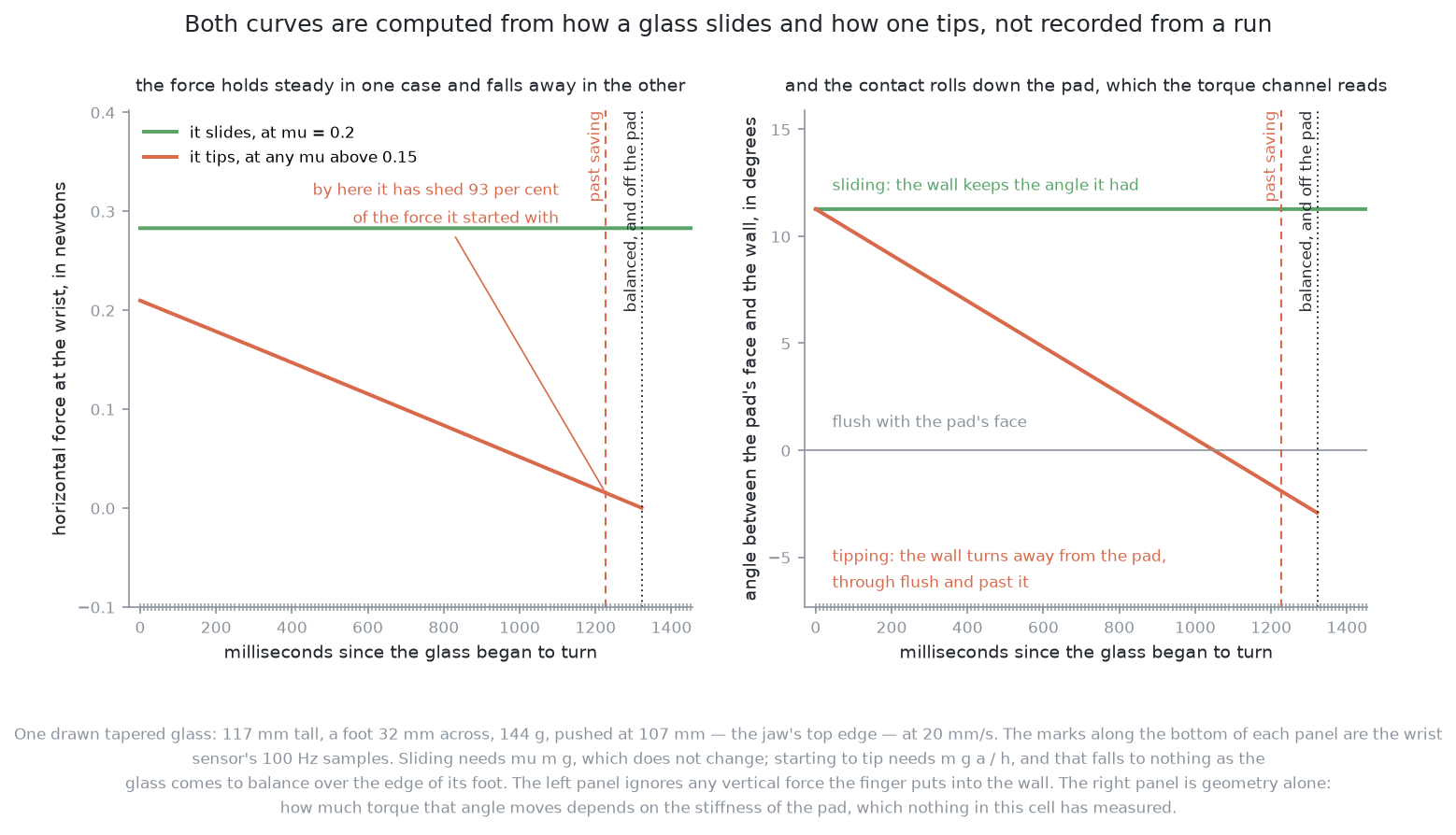

The jaw reports the force it feels while it pushes. It reports far more often than a camera takes pictures. A sliding glass and a tipping glass feel different through this signal, because the force changes in a different way over the push.

A monitor could read this signal. When the contact stops feeling like a slide, it would stop the arm and back the jaw off a little. One force level is not enough to do this. Across the glasses of one kind, every force a tip produces is also a force some slide produces. So the monitor must read how the signal changes, not compare it with one fixed value.

This monitor acts during the push, and the verifier acts after it. The verifier needs a picture, and a picture can only be taken after the arm stops. By then a fallen glass is already on its side. The monitor touches the glass while the glass is still starting to move. So an early abort is the only thing here that could prevent a topple, instead of reporting one. That is the reason to build it. But it is only a design. Nothing in this project implements it. The solutions that topple glasses do so partly because it is missing. Solutions 4 and 6 topple the most, 20 and 40 glasses of 251. The results show what the missing monitor costs.

The monitor has very little power on purpose. It cannot steer, choose a target or approve a push. It can only stop a push. If it fires when it should not, it costs one push and a few seconds. This is the same kind of cost as a wrong verifier answer. Neither helper can do anything except stop or describe.

The two helpers work together. The monitor knows only that the contact stopped feeling like a slide. It cannot say what the glass did, or whether a neighbour moved, because the force signal comes from one contact. The verifier can say this from a picture. So after an abort, the verifier is the natural next check.

The loop recovers from many mistakes, but not from all of them. The next section says which ones it cannot recover from.

6. The honest limit#

Looking again saves the run from a bad prediction. This section says which failures it saves, and which it does not.

Many failures are just new states of the table. For example, a push can stop short or go too far. A glass can turn as it moves, or end up in a new crowd. The next pass through the loop measures each of these and plans against it. Nothing is lost, because the table is measured again, not assumed. A wrong guess at friction also shows up here, as a push that did not go where it was aimed.

But nothing in this loop stands a fallen glass back up. No step in this book lifts anything. The arm has no way to stand a glass up again. Everything after that point works around the fallen glass. This is why the topple limit is a refusal rule, and not a risk to weigh against the value of moving the glass. A risk is worth taking only if the system can recover from the bad outcome. Here it cannot. So the rule is used to say no. The two helpers exist to catch the cases where the rule said yes because of a wrong guess at friction.
